MIDI-PAC Prototype

Two days ago our prototype PCB’s for the MIDI-PAC came in from China. Shipping took much longer than expected so unfortunately we can not show a working product yet at the Dutch MSX fair in Nijmegen tomorrow. We made some pictures of the first assembled board, cartridge and art for the cartridge so you can at least have a sneak peak:

MIDI-PAC Proto Front

MIDI-PAC Side

We keep you posted about our developments. Now it’s time to work on the software again!

Advertisements

Conversion tools for Franky development

Bifi has updated his Franky development page with new conversion tools for cross development from Armando Pérez Abad. These are binaries for Linux, OS-X and Win32 of:

  • SR52SMS
    SCREEN 5 to Franky Mode 4 Tile converter (8*8 pixels)
  • SR52SMSSPR
    SCREEN 5 to Franky Mode 4 Sprite converter (8*16 pixels)
  • C sources of mentioned tools
  • Z80 sources with example code of how to use Franky Mode 4

These tools can be downloaded from http://bifi.msxnet.org/franky/

Franky Mode 4 development tools

Albert Beevendorp (better known as BiFi in the MSX community) just informed us that he has put a developer webpage for Franky online. On this page you will find the latest development tools to program for Franky Mode 4. New tools are currently in development and will be released in the near future. Links to other Sega Master System development tools and information that is useful for developing on Franky is also present. Please check http://bifi.msxnet.org/franky/ for details. Thanks BiFi!

New version of Franky example code

Armando has send us a new version of the Franky example code. the following routines are new or changed:
  • checkfranky changed: New version of detect routine of Franky.
  • checkrefresh: (Thanks to MKII for this code). Check if Franky card is PAL or NTSC (50 or 60hz). hz var is 1 if franky is NTSC and 0 if Franky is PAL. This code is very important for coders to control music replayers. This has to be tested with NTSC Franky cards.
  • keyint flag. You can control the interrupt with this flag. If you want the KEYINT BIOS routine enabled put value != 0 in this var.
The code and rom can be downloaded here:  fsc2v2.zip

Philips Music Module Expander installation manual now online

We announced earlier that we would make the Philips Music Expander available again. This excellent upgrade PCB for your Philips Music Module will turn it into a Panasonic MSX Audio compatible device. With support for the MSX Audio Basic (which you can also use to play FM-PAC basic listings on) and with 256KB sample ram included.

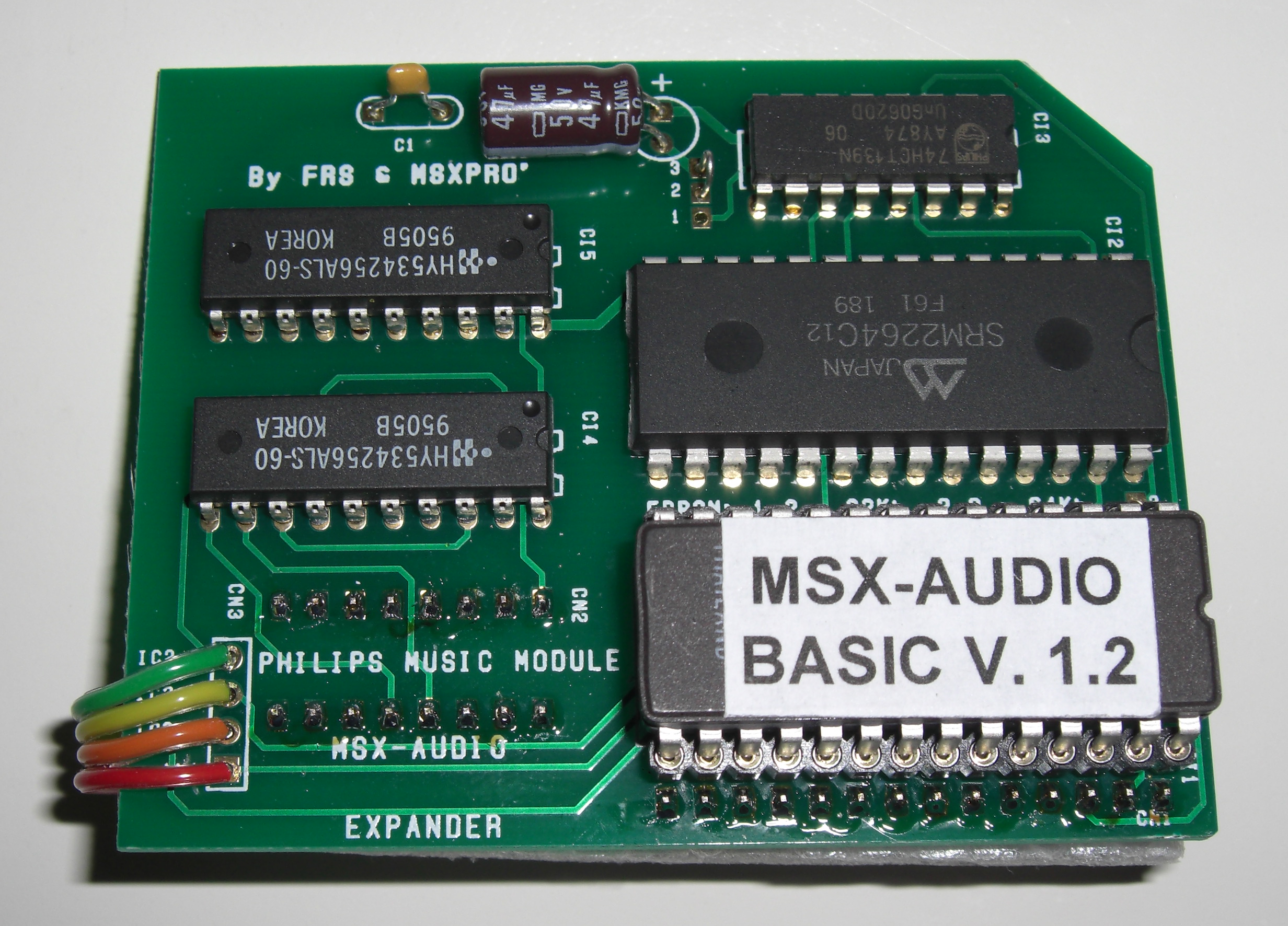

Philips Music Module Expander

The manual with detailed instructions how to mount the expander PCB in 12 easy steps is now online. Please check the MSX Audio Extension Upgrade Manual v1d
